Machine specification
The 101 high-table model lists size, strap, tension and power from the Yalan datasheet.
Automatic strapping equipment
Automatic Strapping Machines
The Yalan 101 is Dongguan Yalan’s high-table automatic arch station for PP strap.
Check Your Strapping Application
Identify a candidate station or send your requirements for an application review. Package clearance, strap and output checks complete the selection.
Engineering and delivery planning
Configured quotation
Price, voltage and options are confirmed after package and line details are reviewed.
Sales desk
Email and WhatsApp reach the same manufacturer desk in Dongguan.
Factory acceptance
Agree representative packages, strap settings and acceptance checks before FAT.

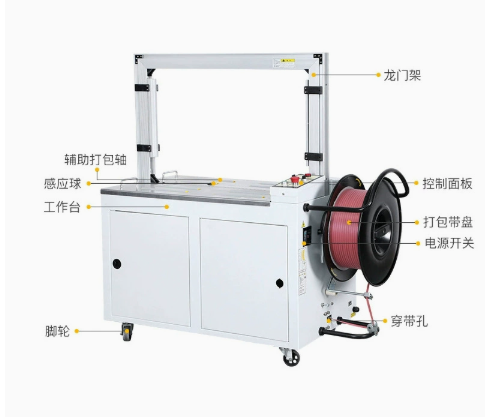

Yalan 101 High-table Strapping Machine
The Yalan 101 combines a high table, package detection and an automatic PP strapping cycle. Match the dimensions and strap specification to your package.
Model 101
101 High-table Fully Automatic Strapping Machine
Carton strapping on a high table, with table sensor balls to start the cycle.
- Sheet cycle time
- ≤ 2.5 s / cycle
- Overall size (L × W × H)
- 1400 × 628 × 1418 mm
- Strap
- PP 9–15 mm
- Tension
- 90 kg max., sheet rating
Use representative cartons and the selected PP strap to set tension and measure finished-package output.
Yalan 101 Specifications
Use the 101 specification below to prepare your package and operating requirements.
| Parameter | Yalan 101 |
|---|---|
| Item / model | 101 high-table fully automatic strapping machine |
| Overall size (L × W × H) | 1400 × 628 × 1418 mm |
| Weight | 220 kg |
| Cycle time | ≤ 2.5 sDatasheet cycle time; the sheet does not identify the test package. Agree package, strap and tension settings for acceptance. |
| Max. tension | 90 kgDatasheet rating in kg; the sheet does not state the measurement method. Agree the tension check and operating setting for the package and PP strap. |
| Strap material | PP |
| Strap width / thickness | 9–15 mm / 0.55–1.0 mm |
| Strap core (inner diameter) | 200–210 mm |
| Min. package size | 60 × 60 mm (width × height) |
| Power | 380 V / 50 Hz, 1000 W / 10 A |

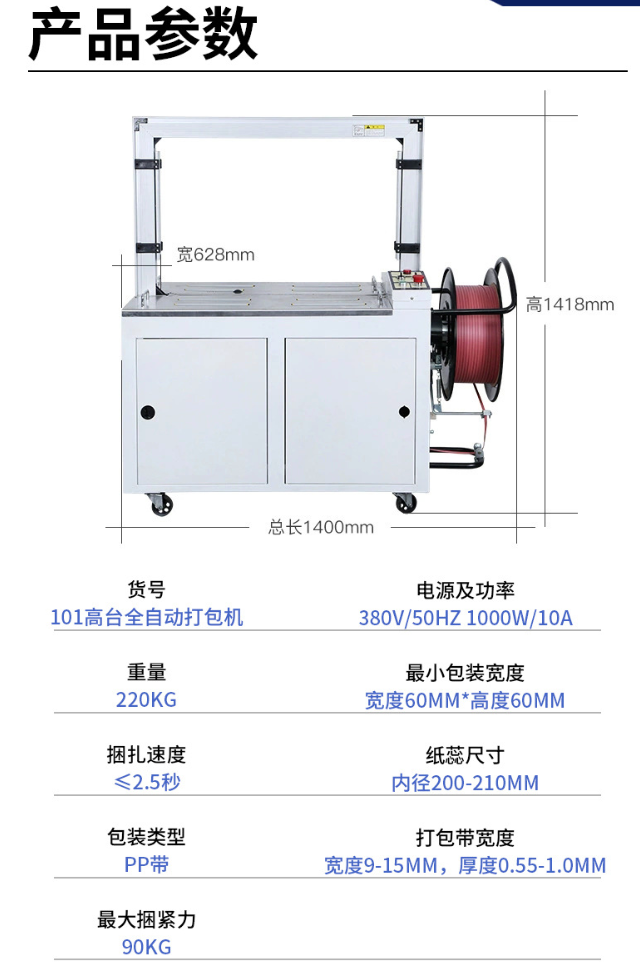

Source: Yalan 101 dimension and parameter sheet. The 628 mm dimension is the overall width. Check clear arch opening, package orientation and strap path on the configuration drawing. Agree package handling, straps per pack and tension settings for the output acceptance run.
View Specifications and Package Checks
Choose the Strapping Arrangement for Your Project
Start with the 101 arch station for cartons. For pallet handling, a different working height or wet-area operation, use the application prompts below to prepare the equipment brief.
Automatic Arch Strapping Machines
Automatic arch strappers feed, tension, seal and cut the strap in one cycle for cartons, boxes and packaged goods.
View the 101 arch modelFully Automatic Strapping Machines
The 101 detects a pack on a high table and starts the strapping cycle. Define the package handling sequence around the station.
View Fully Automatic MachinesPallet Strapping Requirements
Define load height, pallet openings, strap direction and number of straps to assess a pallet-strapping project.
Request a pallet reviewSealing-Head Position and Access
Describe dust, moisture and access around the sealing head when specifying the equipment layout.
Request a side-seal reviewWorking Height and Package Handling
The 101 is a high-table station. Send package weight and handling height when assessing a low-table arrangement.
Request a low-table reviewWet-Area Materials and Cleaning
Specify the cleaning method, chemical exposure and contact surfaces for a wet-area equipment assessment.
Request a washdown reviewWhat Are You Strapping?
Start from the load. Match cartons to the 101 package range; send dimensions and strap positions for other package types.
Boxes & Cartons
The 101 high-table model is specified for cartons and boxes.
Box & Carton Strapping MachinesCorrugated Bundles
Define bundle size, compression and strap path for the application assessment.
Send bundle detailsPalletized Loads
Send pallet dimensions and weight, strap direction and material, strap positions and tension requirements for an engineering assessment.
Request pallet strapping reviewHeavy or Irregular Products
For large, heavy or irregular packs, specify the handling support, clearances and strap path for an application review.
Send irregular-pack detailsFrom Standalone Machines to Fully Automatic Strapping Lines
Define who presents and removes the package, then specify the handling interfaces and cycle sequence.
Level 1: Standalone
Operator places package → automatic strap cycle → package removed
Operator handling sets the pace between cycles. The 101 uses this high-table station arrangement.
Level 2: Conveyor-integrated
Infeed conveyor → product detection → automatic strapping → outfeed conveyor
Automated handling requires a specification for transfer height, package spacing and detection signals.
Level 3: End-of-line system
Case sealing → conveyor → strapping → labeling → palletizing → load securing
Specify the line cycle, upstream and downstream signals, and the layout for continuous production.
How to Choose an Automatic Strapping Machine
Match the package, handling sequence and operating conditions to the machine specification.
01 Package size
Select an arch and working area that cover both the minimum and maximum package dimensions. The 101 sheet lists a minimum width of 60 mm and height of 60 mm. Check the largest pack and its orientation against the clear arch opening on the configuration drawing.
02 Production throughput
Cycle time is not the same as packages per hour. Package spacing, straps per pack and handling time all change output. The 101 datasheet cycle is ≤ 2.5 s. Measure acceptable-package output with the agreed pack and strap settings.
03 Automation level
Semi-automatic, automatic, fully automatic and inline are different jobs. The 101 is a fully automatic high-table station.
04 Strap material
The 101 is specified for PP, 9–15 mm wide. Match the strap material to the machine specification.
05 Tension
Higher tension is not always better. The 101 sheet lists 90 kg maximum in its original unit. Set the operating tension against package strength.
06 Operating environment
Describe dust, moisture and the cleaning method. Define protection and material requirements for the installation environment.
Configure the Machine Around Your Packaging Process
Use the 101 datasheet baseline below. Record any additional layout, material or control requirements in the project specification.
Package clearance
The 101 overall dimensions are 1400 × 628 × 1418 mm (L × W × H). Match the largest pack and strap path to the clear arch opening on the configuration drawing.
Strap material and width
PP, 9–15 mm wide and 0.55–1.0 mm thick, core 200–210 mm.
Tension range
Maximum 90 kg as printed. Confirm the setting against carton strength at quote.
Electrical configuration
380 V / 50 Hz, 1000 W / 10 A on the datasheet. Include the site supply in the RFQ to specify the electrical configuration.
Strapping Requirements by Industry
Package dimensions, strength and strap position drive the equipment specification across these industries.
Corrugated & paper
Define bundle size, compression needs and strap positions for paper and corrugated packs.
Discuss this applicationLogistics & warehousing
Match cartons and boxes to the 101 size range and record the required packing-station output.
Discuss this applicationFood, meat & seafood
Describe dry or wet packing conditions and the site cleaning requirements.
Discuss this applicationConstruction & ceramics
Send pallet weight, load stability and strap requirements for application assessment.
Discuss this applicationFurniture & appliances
Large or irregular packs need arch and path confirmation before a model is named.
Discuss this applicationPrinting & mailing
Use representative bundles to agree tension and check edge deformation.
Discuss this applicationWhy Automate Your Strapping Process?
Assess automation against handling time, strap consistency, consumable use and the quality of finished packages.
Reduce manual handling
Reduce repetitive manual feeding, tensioning and sealing operations when a station matches the pack.
Measure finished output
Compare acceptable packages per hour with the same package mix, strap settings and handling sequence. Include loading, repositioning and removal time.
Improve strap consistency
Apply a set tension and seal cycle instead of operator-to-operator variation.
Improve packaging quality
Reduce loose straps and inconsistent positioning when the pack fits the arch and strap path.
Improve operator ergonomics
Match the working height and package transfer method to the operator task.
Support line integration
Send the conveyor layout, transfer height and required signals to define integration scope.
Quotation Scope and Operating Cost Drivers
Automatic strapping machine pricing depends on automation level, machine speed, arch size, strap material and whether the machine operates as a standalone unit or as part of an integrated packaging line.
Machine and handling scope
Separate the strapping station, package transfer and any conveyors into quotation items. State who loads, positions and removes each pack.
Required output
Specify packages per hour, straps per package and the product mix. Include the handling sequence and acceptance run conditions when comparing proposals.
Clearance and installation
Supply the largest and smallest packages, orientation, working height and available floor space so the drawing can define the station layout.
Strap and consumable use
Record strap material, width, thickness and coil core. Compare strap used per acceptable package, including rejected straps and rework.
Controls and environment
Itemize conveyor interfaces, site electrical supply, dust or moisture exposure, and cleaning requirements in the project scope.
Delivery and operating costs
Compare packing, freight, commissioning, training and spare parts alongside equipment price. Include changeover time and maintenance access in the operating review.
The 101 quotation records the equipment scope, price and delivery schedule for your project.
Request a Configured QuoteSupport Beyond the Machine
Define documentation, commissioning and support responsibilities as part of the equipment delivery.
Application review
Review package dimensions, throughput and operating conditions before naming a model.
Technical drawings
The 101 dimension sheet defines the machine envelope. Agree the installation layout in the equipment specification.
Installation support
Agree remote or on-site support, responsibilities and costs for the installation location.
Operator training
Operating, strap loading, parameter setting and basic maintenance guidance can be discussed in the quote.
Remote troubleshooting
Alarm and operating questions can be sent by email or WhatsApp with photos or short videos.
Spare parts
Identify wear and replacement parts by machine model and configuration; agree the parts list and delivery terms.
Frequently Asked Questions
What is an automatic strapping machine?
An automatic strapping machine feeds, tensions, seals and cuts plastic strap around a package after the strapping cycle is activated.
What is the difference between semi-automatic and automatic strapping machines?
Semi-automatic machines normally require an operator to manually feed the strap around the package. Automatic arch machines automatically feed the strap around the package before tensioning and sealing.
What products can an automatic strapping machine handle?
The Yalan 101 handles suitable cartons and boxes on a high table. Send package size, weight and strap positions to assess other applications.
Can the machine use both PP and PET strap?
The 101 specification is for PP strap, 9–15 mm wide. Select a machine configuration specified for your strap material.
How fast is an automatic strapping machine?
The 101 datasheet lists a cycle time of ≤ 2.5 seconds without identifying the test package. Measure finished-package output with the agreed handling sequence, straps per package and tension setting during acceptance.
Can the machine be integrated with an existing conveyor?
The 101 is a standalone high-table station with table sensors. For a conveyor project, send transfer height, package spacing and control-signal requirements to define a suitable system.
How do I specify package clearance and voltage?
The 101 sheet lists overall dimensions of 1400 × 628 × 1418 mm (L × W × H) and 380 V / 50 Hz. Match the largest package and strap path to the clear arch opening on the configuration drawing, and include the site supply in your quotation brief.
What information is required for a quotation?
Send the package dimensions, weight, required throughput, number of straps, strap material, voltage and a photo or video of the current packaging process.
